Niobe family

Transmitter's for bioprocesses sensor's

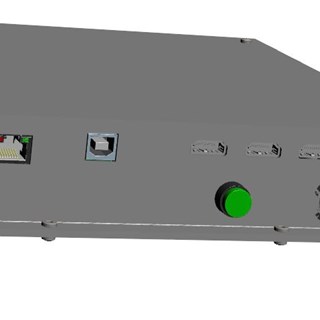

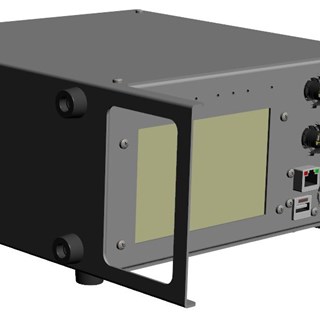

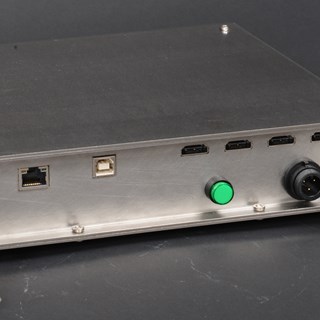

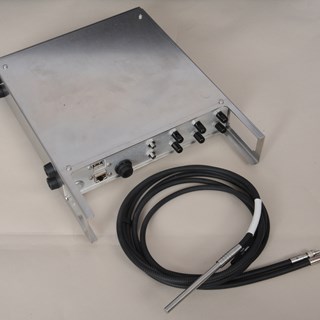

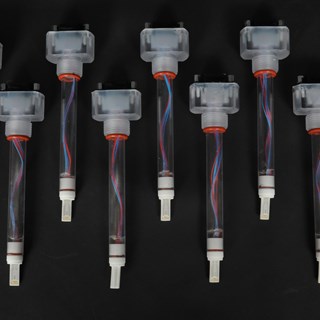

Sipylus For 6 ConduccellLots Of ConduccellOgygia Front With DisplayOgygia Transmitter For 4 SensorsSipylus Display

Niobe family deals with transmitters, pre-amplifiers for various sensor connection relevant for the pharma industry. All pre-amplifiers / transmitters devices is CE certified and EMC compliant for dedicated external Single-Use-Sensor (SUS) or Re-Useable-Sensors (RUS). The external Power-Supply is UL listed.



Product, model name

Sipylus

Ogygia

Andromeda

pH - chemical

ARC - SUS

no

no

DO - optical

ARC RUS

O2 gas

no

Glucose

2024 - ARC

no

no

Conductivity - electrical

ARC SUS

no

no

biomass - capacitance

SUS patch + ARC RUS

no

no

CO2 - optical

ARC RUS

CO2 gas

no

Temperature

Pt100, Pt1000, NTC22

no

no

PendoTech pressure

no

no

yes

Digital balancer

no

no

yes

Hephaestus cabinet size

U2

U2

U1

Communication - LAN

OPC-UA

OPC-UA

OPC-UA

Sipylus status - in production since 2022 Q3

In production - Digital transmitter with 6 independent ARC input for in liquid measuring: pH, DO, bio-mass, conductivity, CO2, temp. Designed for being a part of the Cronus-PCS package. As Sipylus communicate also via OPC-UA then stand alone applications is straight forward. Designed for in liquid measurements. Analogue sensors may require the ARC module.

Ogygia status - in production 2024 Q3

Digital transmitter with 4 independent sensors for O2 and CO2 gases - two of each. Designed for being a part of the Cronus-PCS package. As Ogygia communicate also via OPC-UA then stand alone applications is straight forward. Designed for off-gas measurements from bioreactors and fermenters.

Andromeda status - in production 2024 Q2

Signal transmitter for connecting a range of periphery external devices. Such a balancers and analogue devices.

Info around Single-Use-Sensor's to be found on:

Check out availability status on www.cronus-pcs.com/commerce
